Orientation, Taskpane, Adding a Taskpane Item, Workspace
|

To add the button "Workspace (open multiple forms)" to your Taskpane, from the Taskpane Item Wizard select "Workspace (open multiple forms)" and click Next Button.

Taskpane Image

To go to the taskpane item wizard, click here for the Help topic "Customising the Taskpane".

Taskpane, Adding an Item, Item Type

Click Next Button.


Do you want to close all other Forms before opening this Workspace?

"Close Forms not in Workspace?"

Tick this checkbox to close any open forms that are not included in the Workspace that has been set up. These will close automatically when you click your Taskpane button to open the Workspace.

If you leave this unticked, all currently open Forms will be left open, as well as the new Forms opened in the Workspace.

Specify Application Shortcuts (one per row)

Enter the Forms you would like to see in your Workspace. All currently opened forms will be placed here by default.

  • You can insert blank lines to make it easier to read if you wish.
  • Any lines that begin with a single quote will be treated as Comments and will not be used when creating the Workspace.
  • You can open multiple forms of the same type by including the tag "&forceNew=True".

Button Strip

IconDescription
Add Item Button
Add an application shortcut to the List
Workspace
Automatically populate with all currently open Forms

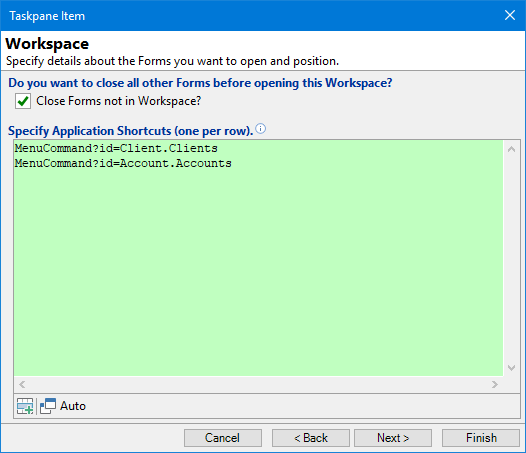

Taskpane - Workspace

Click Next Button.


Other Details

Label your new button accordingly and write a tool tip that will appear when hovering over the button. This tool tip will explain in more depth what the button does.

Taskpane - Other Details - Workspace

Click Next Button.


Icon

Optionally choose an icon to represent the new command from either the dropdown list or import your own image.

If you are importing an image, it will need to be a .ico file.


Taskpane Item - Icon

Click Finish Buttonand you will return to the Taskpane Item form. From here choose where you would like to position the new item using the button strip (shown below) or click OK Button and then OK Button again.


Button Strip

IconDefinition
Add Item Button
Add a new Taskpane Item
Row Delete Button
Delete selected row
Select All
Select all rows
Select None
Select no rows
Select Up
Select all rows above including the current row
Select Down
Select all rows below including the current row
Grid Row Up Button
Move the current row up (Ctrl+Up)
Grid Row Down Button
Move the current row up (Ctrl+Down)
EditCut
Cut the selection to the Clipboard
EditCopy
Copy selection to the Clipboard
EditPaste
Paste from the Clipboard
Reset
Click to reset this Taskpane to the default Items
